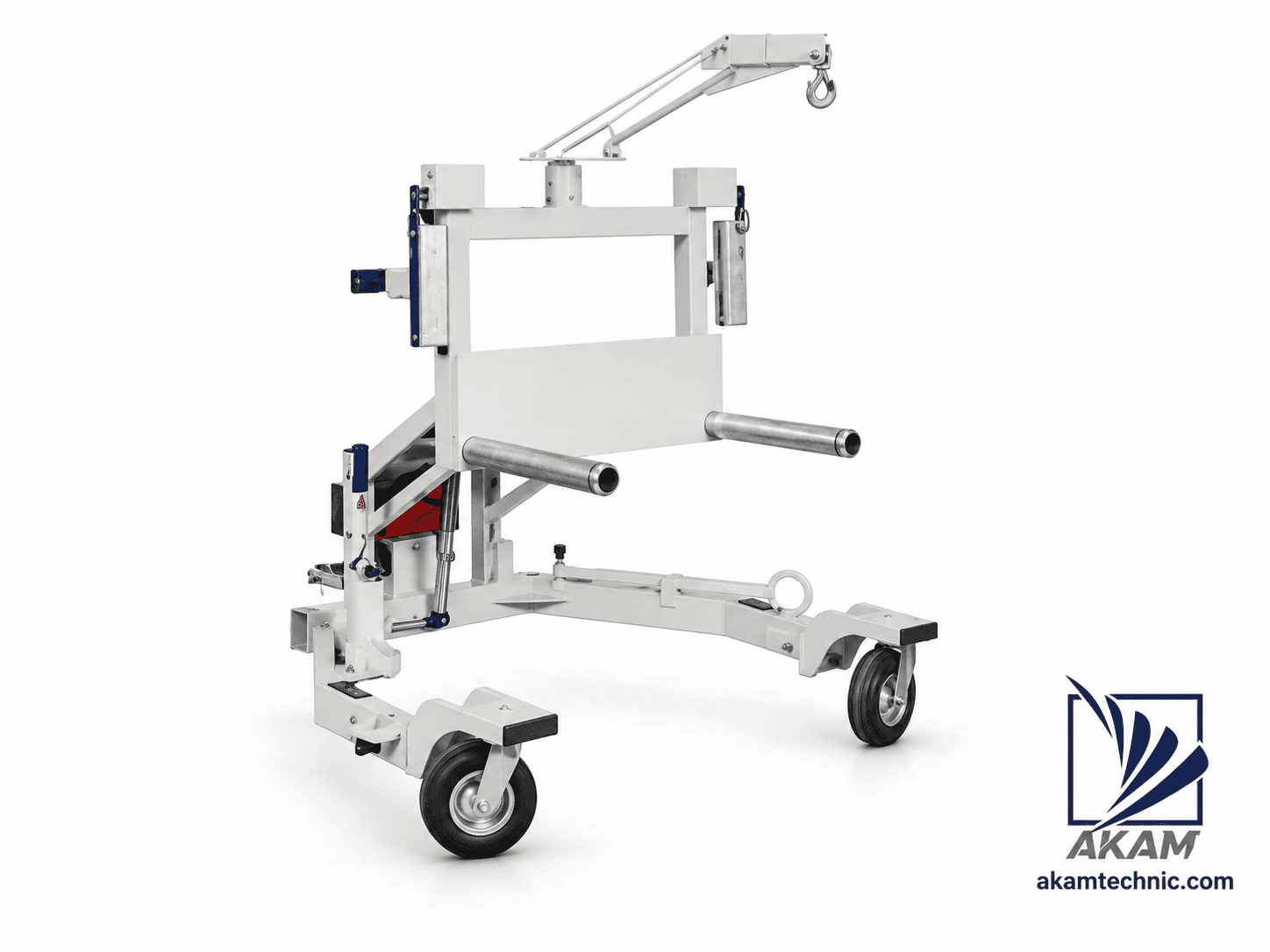

Hydraulic Aircraft Wheel and Brake Change Dolly with Lifting Boom
This hydraulic unit is designed to support, lift, move, and align aircraft wheels and brake assemblies during maintenance operations. Two parallel wheel-support arms and an upper hook-equipped lifting boom provide improved control of components during removal and installation.
- Part No.
- Manufacturer
- AKAM TECHNIC
- Status
- Availability on request
Overview
The hydraulic aircraft wheel and brake change dolly is specialized equipment intended to support wheel, brake, and landing gear servicing operations. The product structure includes a mobile wheeled chassis, two parallel wheel-support arms, a hydraulic lifting mechanism, and an upper lifting boom equipped with a hook. The wheel or serviced assembly is supported on the parallel arms, while the lifting mechanism allows its height and position to be adjusted for alignment with the landing gear axle. The upper lifting boom is used to lift, support, and position the brake assembly or related components during removal and installation. The wheeled chassis enables controlled movement and positioning of the unit close to the work area, making it suitable for ramp, hangar, and aircraft MRO operations. Rated load, lifting height, supported wheel-size range, and lifting-boom capacity must be confirmed from AKAM's final engineering data.
Application
• Removing and installing aircraft main or nose wheels • Supporting and moving wheels in a controlled manner during servicing • Adjusting wheel height and alignment with the landing gear axle • Lifting and positioning brake assemblies using the hook-equipped lifting boom • Transporting wheels and brake assemblies within ramp or hangar areas • Supporting wheel, brake, and landing gear servicing operations
Compatible aircraft models
Technical specifications
- Lifting Method
- Wheel Support
